Innovative test solutions for diverse semiconductor system applications
With the knowledge gathered from decades of supporting Tier 1 leaders and emerging industries, Amkor understands that test solutions must address advanced technology, quality, performance and cost of test. Through early engagement in each customer’s product lifecycle, Amkor helps define test strategies and intelligent equipment selection to provide differentiated test solutions.
Amkor offers comprehensive test services, including and not limited to, wafer level and package assembly. Amkor is the leading RF test services supplier and is engaged in ongoing joint efforts with test equipment suppliers and customers to enable 5G product production testing. As the top OSAT supplier for high-performance compute (HPC), artificial intelligence (AI) processors & automotive testing, we have an extensive array of test capabilities and significant experience in device testing. The performance envelope for Burn In and System Level Test have recently expanded, to account for higher power and lower cost.
Test Equipment
Amkor has an extensive equipment fleet and continues to invest in new capabilities required to test the latest devices
Application
- High-Performance Compute, AI, Power, Memory, Analog, RF, MEMs, Sensor, SiP
Tester
- Clock: PEC clock rate, differential clocks, low Jitter, levels
- I/O: At-speed functional test. Low- & high-speed data I/O differential buses. Peripheral Event Controller (PEC) channel count, levels, timing – low EPA, patterns, test & measurements
- Power Delivery: Device power supply – channel count, levels, ganging, source and measure, high accuracy
- RF & Analog I/O: RF source & measure FE with optimal Rx/Tx port count to allow max parallelism for max UPH; ADC/DAC – resolution, accuracy, dynamic range to enable testing the latest technologies
- Optimal parallelism for max UPH
Load Board
- PCB Material, PCB width, Trace impedance
- Per pin current capability, Pin-to-pin crosstalk
- RFID monitoring for tooling
- Temperature tolerance
Test Socket
- Per pin current capability, Pin count per DUT, Pin field planarity
- Pin-to-pin crosstalk/isolation/shielding
- Temperature tolerance
Handler
- Auto temperature control/thermal soak
- DUT rotation
- Footprint, Loading force, Loader speed
- Package handling, Position XY accuracy
Application
- Die Sales – Low-power apps
- Chiplets – 2.5D, 3D – μBumps, Hybrid bonding
- Silicon Photonics
Testers
- High-speed logic, mixed-signal, analog, high power and RF
- Probe pin data rate & current densities, economical parallelism

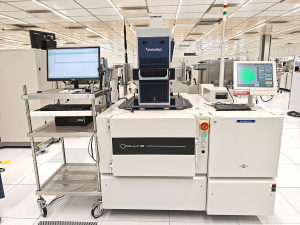

Prober
- Wafer Size – 8” and 12” with 7, 5, 3, 2 nm process technologies
- Chuck planarity, Loading force, Position XY accuracy, Rotational angle
- Temperature Range
- Reconstituted wafers
Probe Card
- All docking types e.g. cable, pogo tower, direct dock
- In-line LASER cleaning; Overdrive
- Probe card technologies: Cantilever, vertical, pogo, membrane, MEMS & dual-level Chip-on-Wafer (CoW)
- Number of touchdowns
- Pin count per DUT; Pin-to-pin crosstalk; Per pin current capability
- Pin field planarity; Alignment accuracy
Temperature tolerance
Application
- Logic, Memory, Automotive
- Sub 30W, Up to 200W, Up to 1000W
- Wafer Level & Package Level
- Massively parallel test insertion
Burn-in Tester
- High zone/chambers count
- Max clock rate
- Max I/O channel count
- Max slot count
- Product qualification & 100% burn-in support
- Wide power range
Burn-in Board
- DUT Power Delivery: All power application ICs supported
- I/O & clock rates supported
- Pin-to-pin crosstalk: Minimal for most, if not all, applications
- Socket config & features
- Cost-sensitive socket, with pin depopulation & biasing
- High temp tolerances
Burn-in Handler
- Burn-in Board (BIB) loader/unloader
Burn-in Loader/Unloader (BLU)
- All popular package types supported
- High-efficiency input and output
- Manual Component & BIB Loading/Unloading: Discouraged for higher volumes & 100% burn-in, in the interest of efficient cycle times
Application
- High-Performance Compute, Automotive, SiP
- Massively parallel test insertion

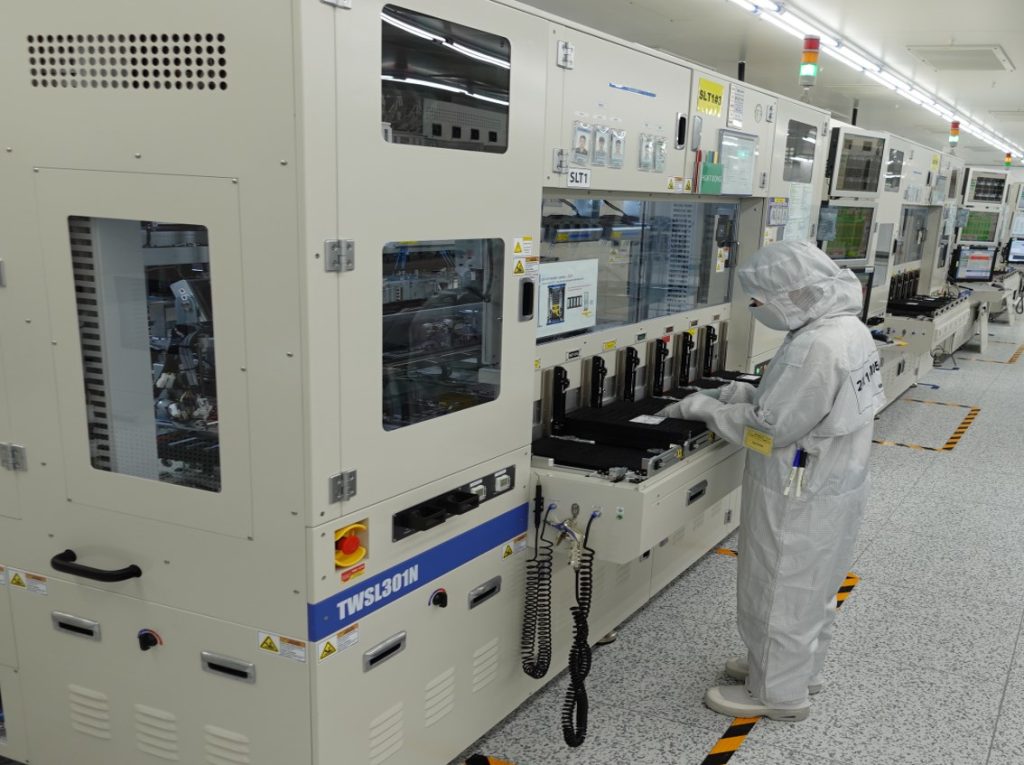

System Level Tester
- Clock Rate: High
- I/O: Max slot count, max I/O channel count
- Power Delivery: Range ultra-low, low, medium, high, rail count
- Max units per hour
System Level Test Board
- DUT power delivery – all power application ICs
- supported
- I/O & clock rates supported
- Pin-to-pin crosstalk – minimal for most, if not all applications
- Socket configurations & features
- Cost-sensitive socket, with pin depopulation & biasing
- High temp tolerances
System Level Handler
- High test pattern zone count
- Product qualification & 100% support
- System level load/unloader
- All popular package types supported
- High-efficiency I/O
- Temp controllers – low temp soak overhead times
Fully Customizable Backend Processes
- Post marking is optional and bake is determined based on moisture sensitivity level (MSL)

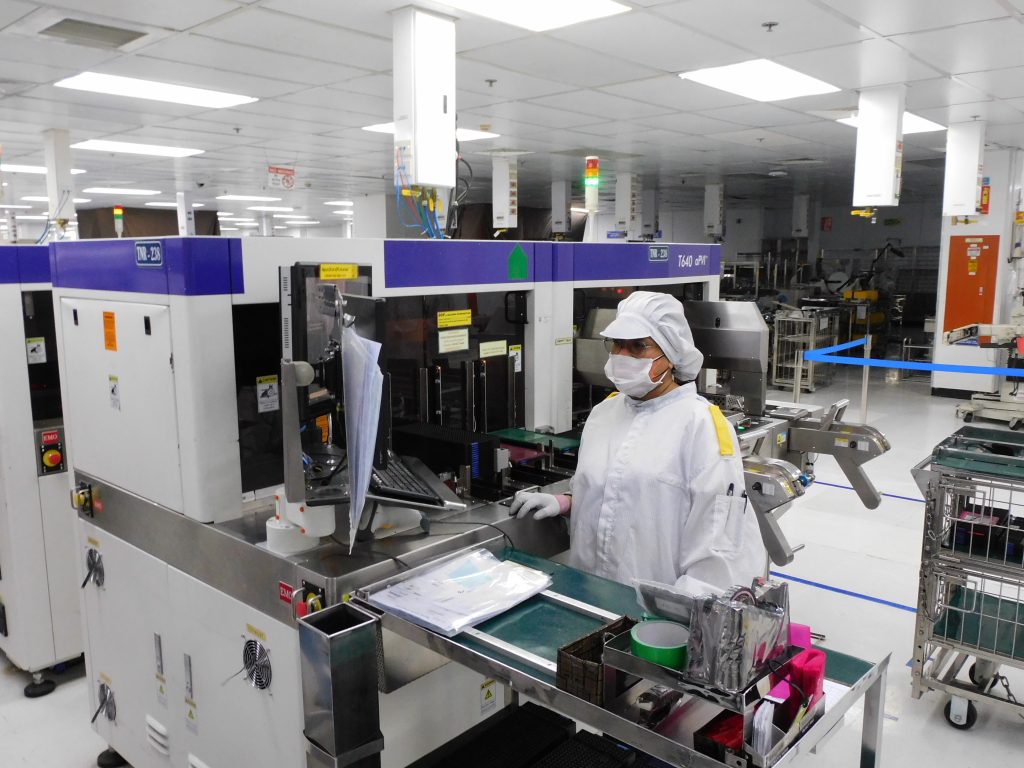

- For small turret handler packages, the final test, scan and tape & reel packing is done sequentially
Advanced Solution for Advanced Packing
- Package-on-Package (PoP)
- Through Silicon Vias (TSV)
- Flip Chip CSP (fcCSP)
- Flip Chip BGA (FCBGA)
Test Locations
Our sites are strategically located near leading foundries, and major customer sites and co-located to support probe and test with assembly

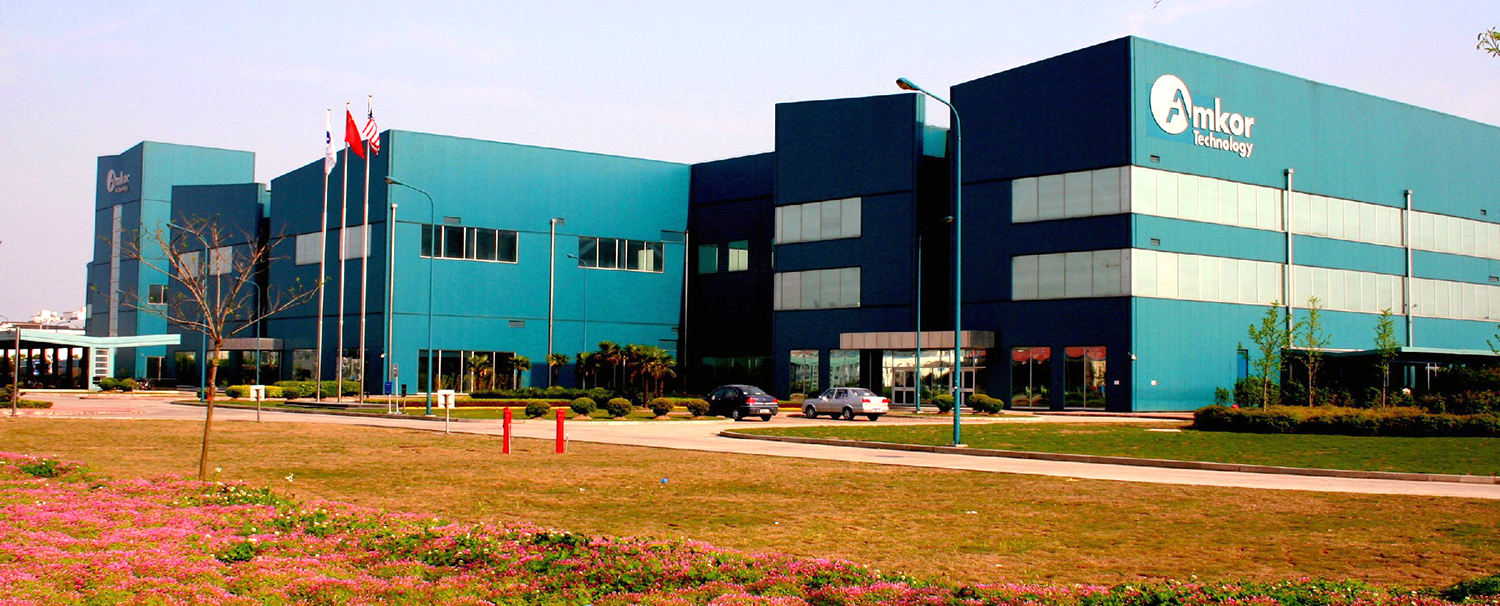

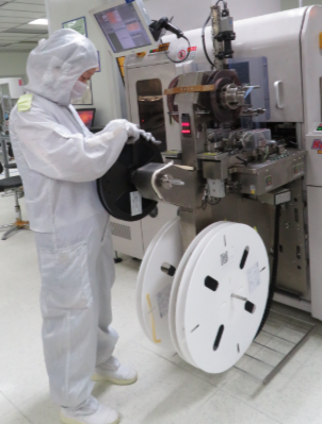

Amkor Technology China (ATC) is located in the Pilot Free Trade Zone, which is only about 30 kilometers from two primary airports in Shanghai. The Free Trade Zone’s convenient logistics and business-friendly policies allow Amkor customers to deliver goods around the globe through value-added taxes or tax exemptions. ATC has 170,000 square meters of manufacturing space.
Offerings
- Wafer probe
- Film frame test
- Package test
- Burn-in test
- System level test
- Test development
Packages
- CSP
- FCBGA
- Flip Chip
- MLF®/QFN
- PBGA
- WLCSP
Markets
- Automotive
- Communication
- Consumer
- Industrial

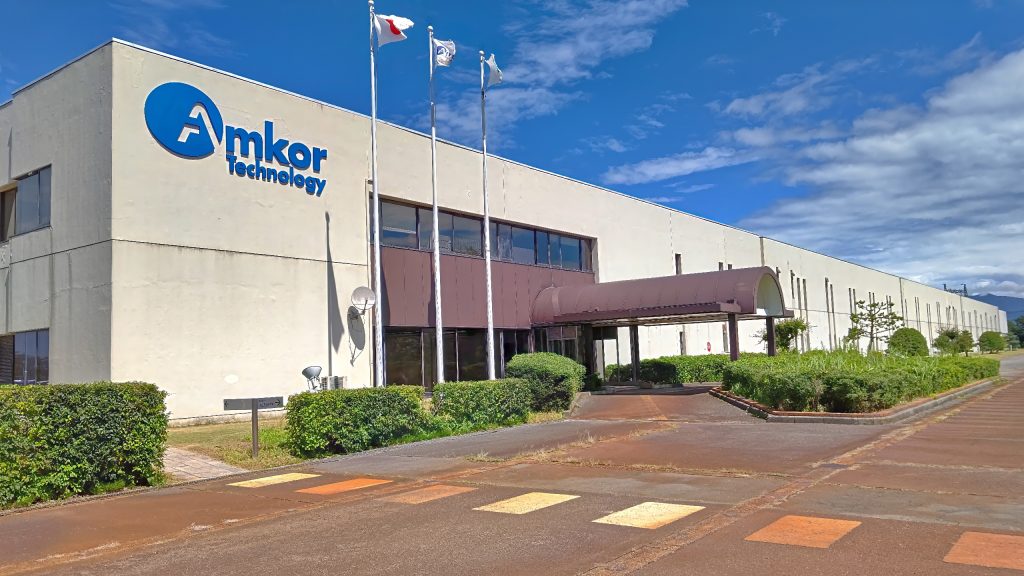

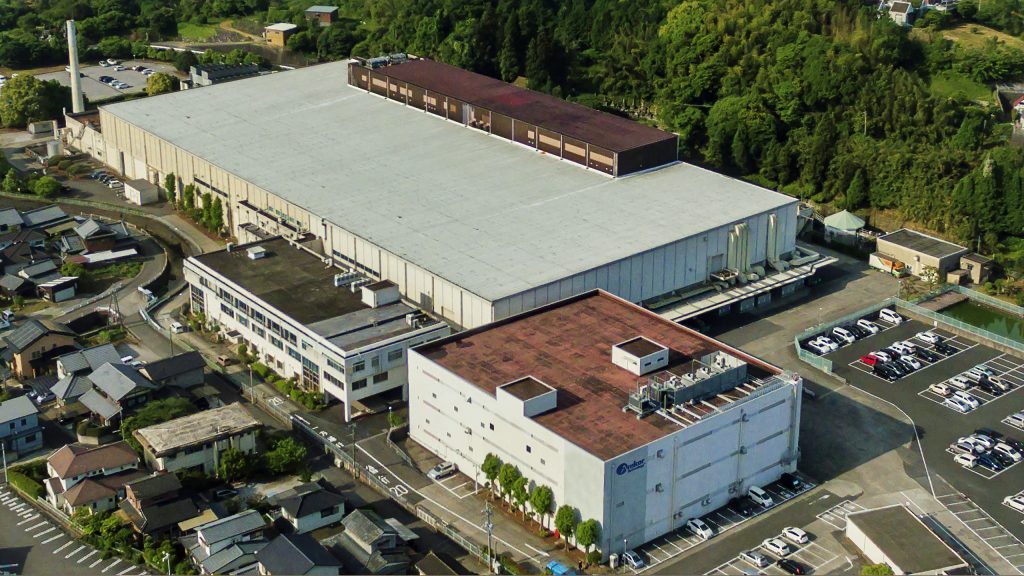

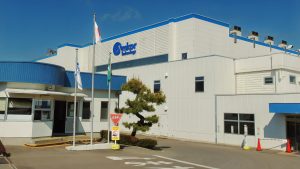

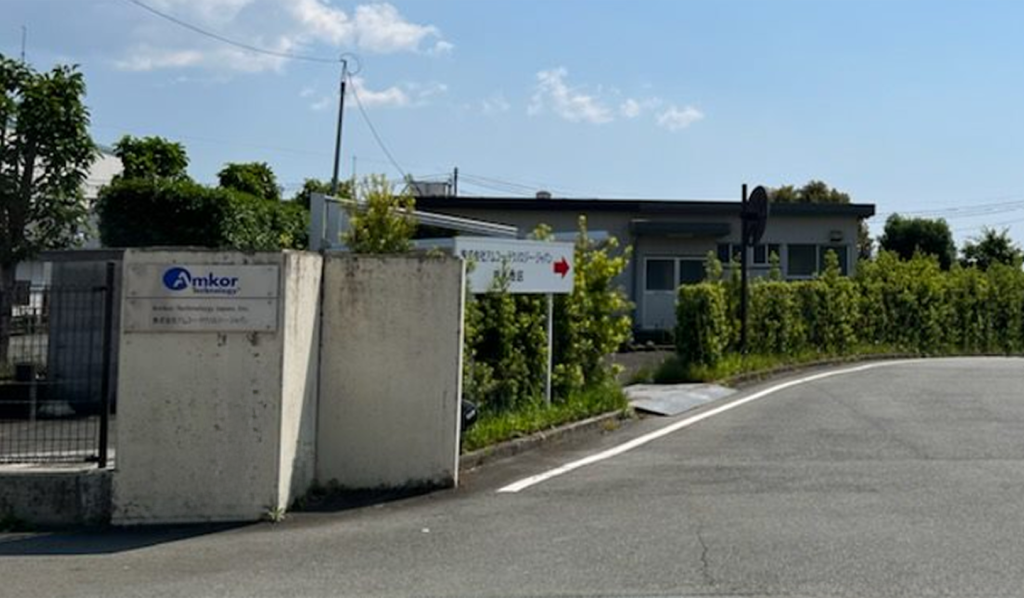

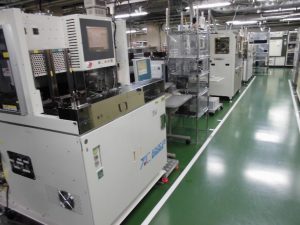

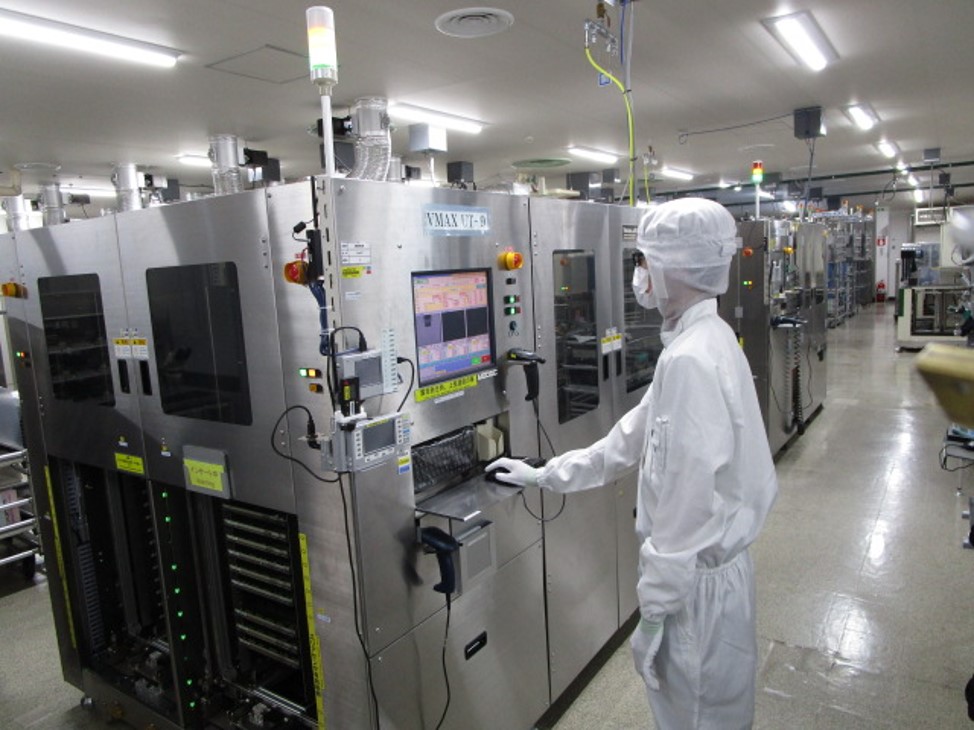

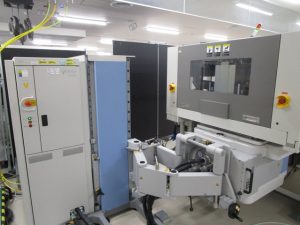

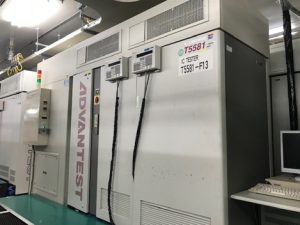

Amkor Technology Japan (ATJ) is located in Japan with seven factories and a head office. The head office is in Tokyo, which is only around 16 kilometers from HND airport and 5 kilometers from Tokyo station. The factories are located all over Japan and the diversified manufacturing footprint is a key differentiator/competitive advantage that allows customers options to de-risk supply chains. ATJ has test experience with various semiconductor devices, e.g. Mix analog, Power discrete and module, System LSI and CIS and has 170,000 square meters of manufacturing space.
Offerings
- Wafer probe
- Package test
- Test development
Packages
- Flip Chip
- PBGA
- QFN
Markets
- Automotive
- Communication
- Memory

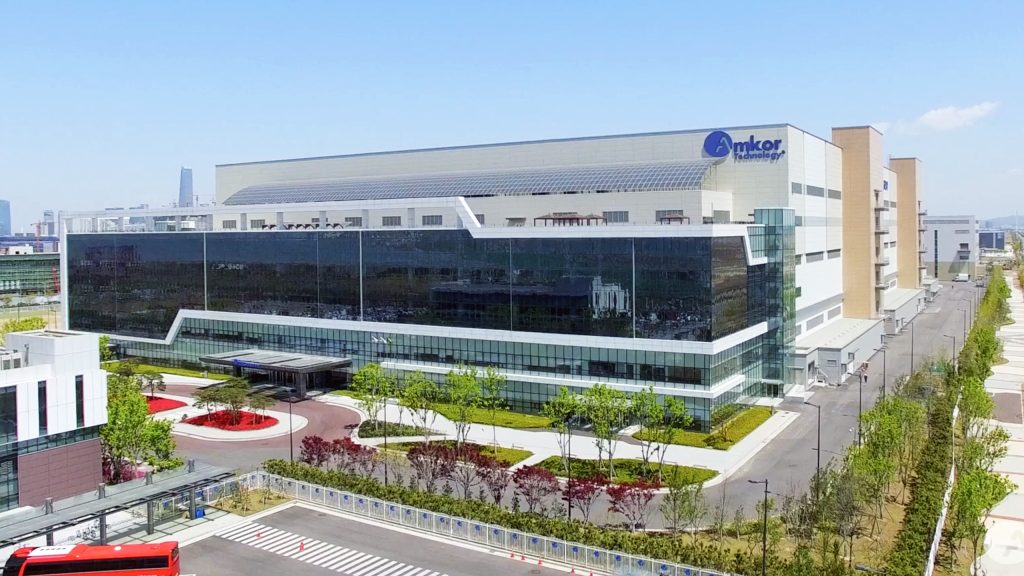

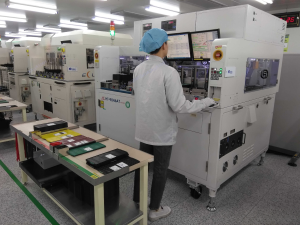

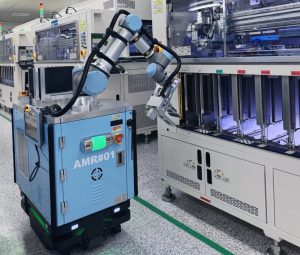

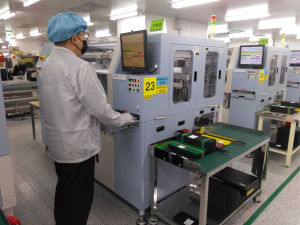

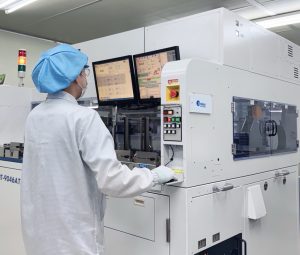

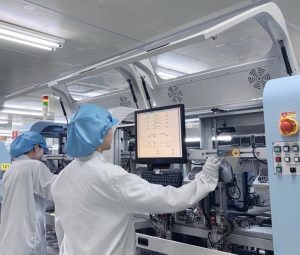

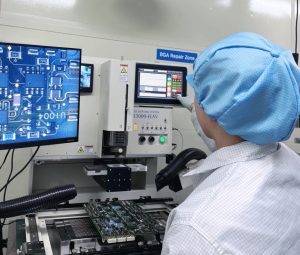

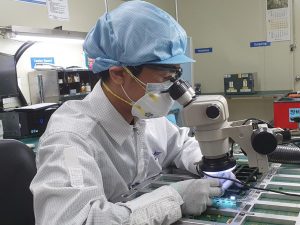

Amkor Technology Korea (ATK) operations encompass more than 11M ft2 of floor space with production facilities, product development centers, and sales and support offices strategically located in key electronics manufacturing regions. Our customers benefit from our extensive global footprint, enabling us to easily handle large orders and offer quick turnaround times. Our diverse portfolio includes stacked die, wafer level, MEMS, flip chip, Through Silicon Via (TSV) and 2.5/3D packaging, allowing us to be a single source for many customers. The ATK5 & ATK3 are about 34 kilometers away from Incheon airport. ATK4 is in the south of SKorea 335 kilometers from the Incheon airport.
Offerings

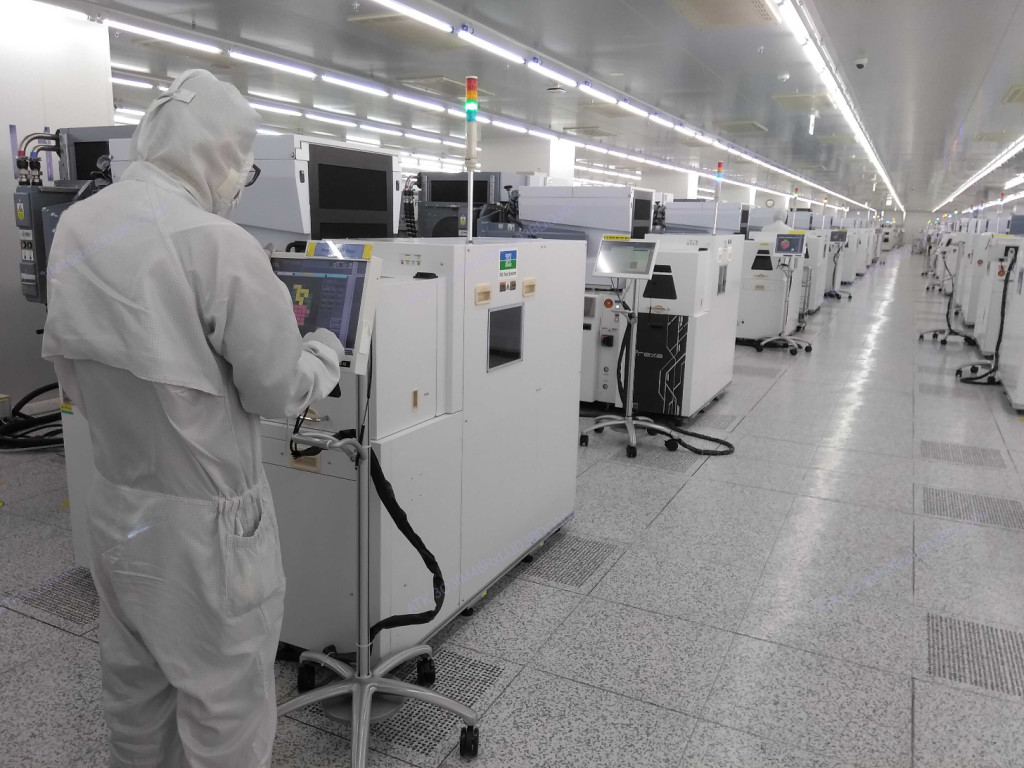

- Wafer probe
- Package test
- Film frame test
- System level test
- Test development
- Bumping
Packages
- FCBGA
- fcCSP
- MLF®
- TQFP
- TMV®
- TSV – 2.5D, 3D
- WLCSP
Markets
- High-Performance Compute (HPC)
- Artificial Intelligence (AI)
- Automotive
- Communication
- Consumer

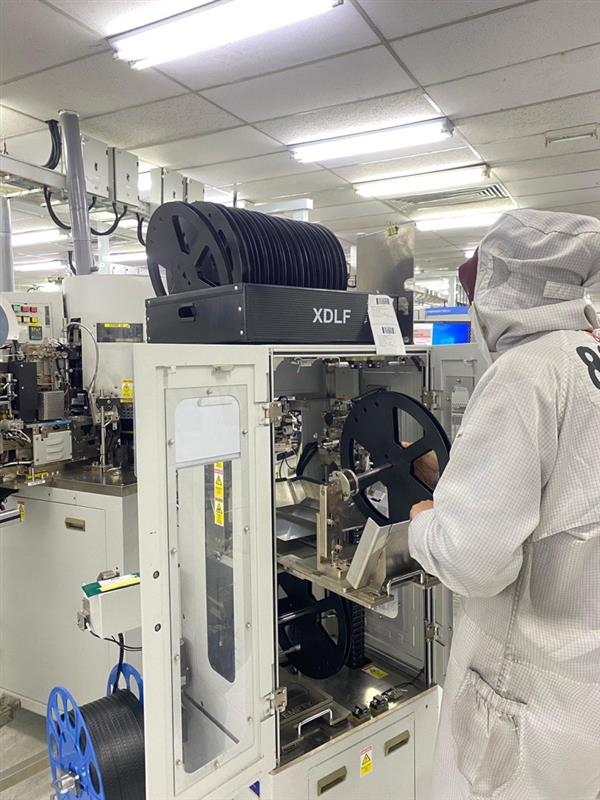

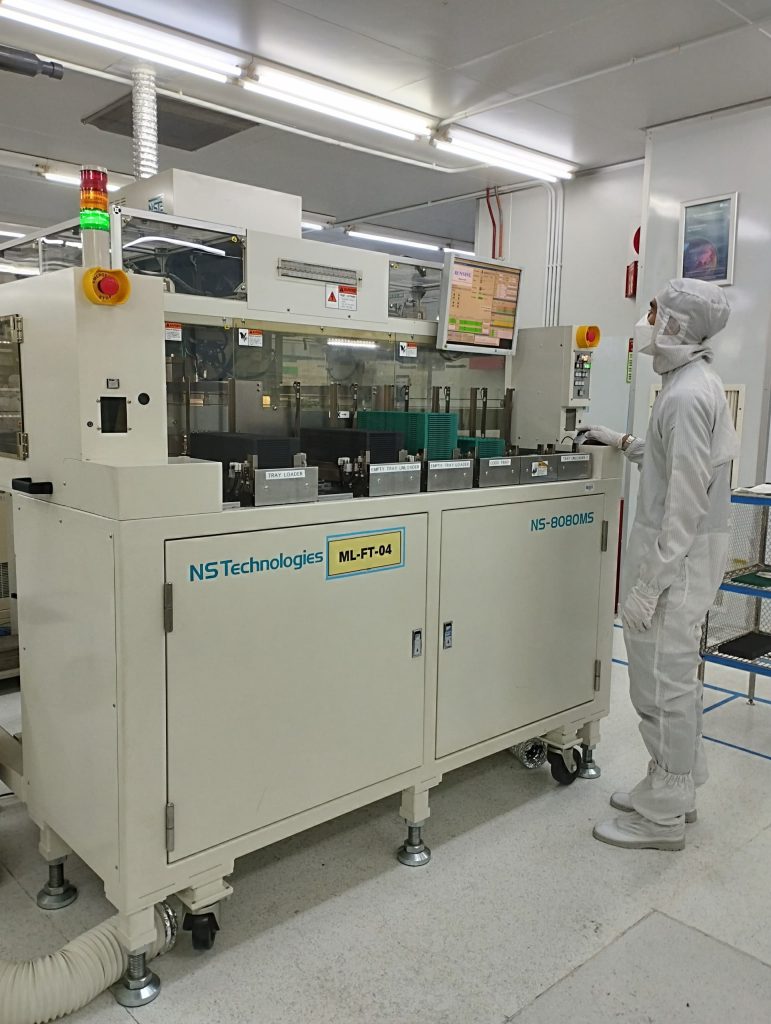

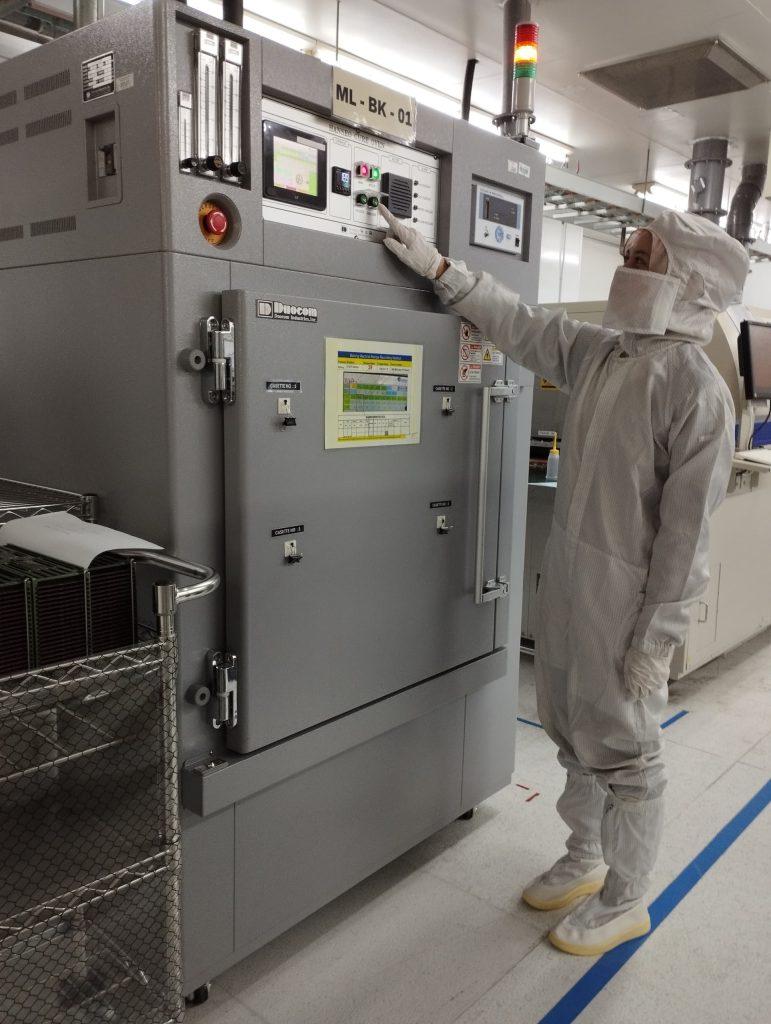

Amkor Technology Malaysia (ATM) is located in Malaysia’s Free Industrial Zone, about 50 kilometers from Kuala Lumpur city center and Kuala Lumpur International Airport. The Free Trade Zone’s convenient logistics and business-friendly policies allow Amkor customers to deliver goods around the globe through value-added taxes or tax exemptions. ATM has 32,000 square meters of manufacturing space and 108,800 square meters of land.
Offerings

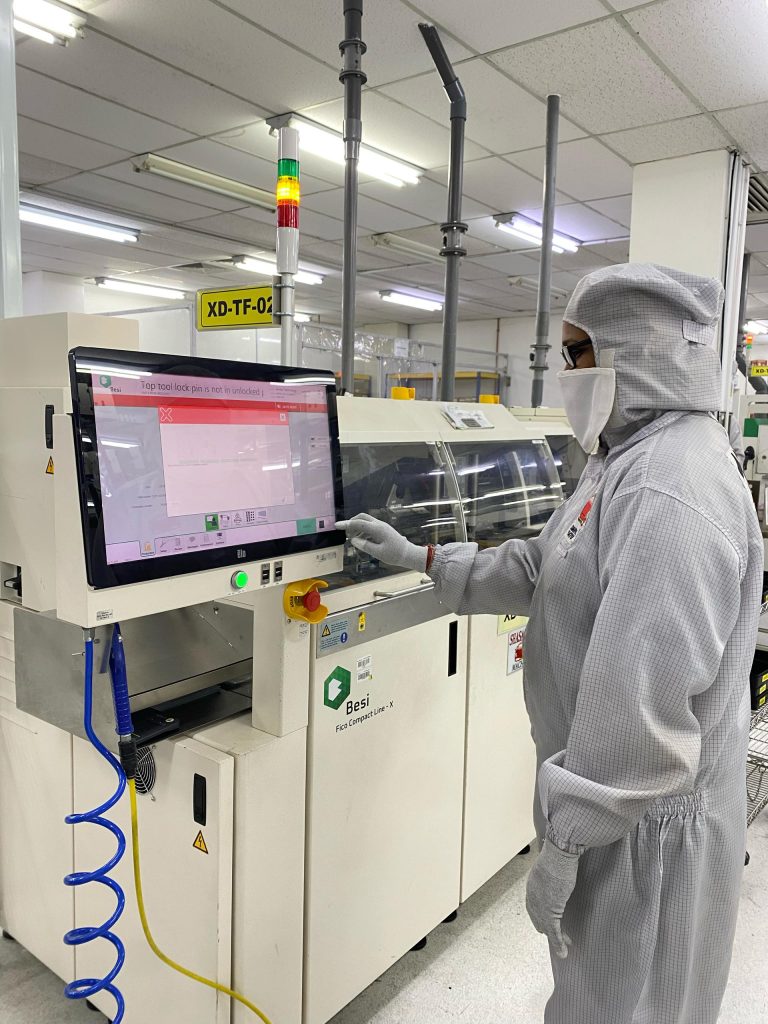

- Package test
Packages
- SO8-FL
- SONXXX-FL
- TO-220FP
- TQFP
- TSON-FL
Markets
- Discrete
- Power

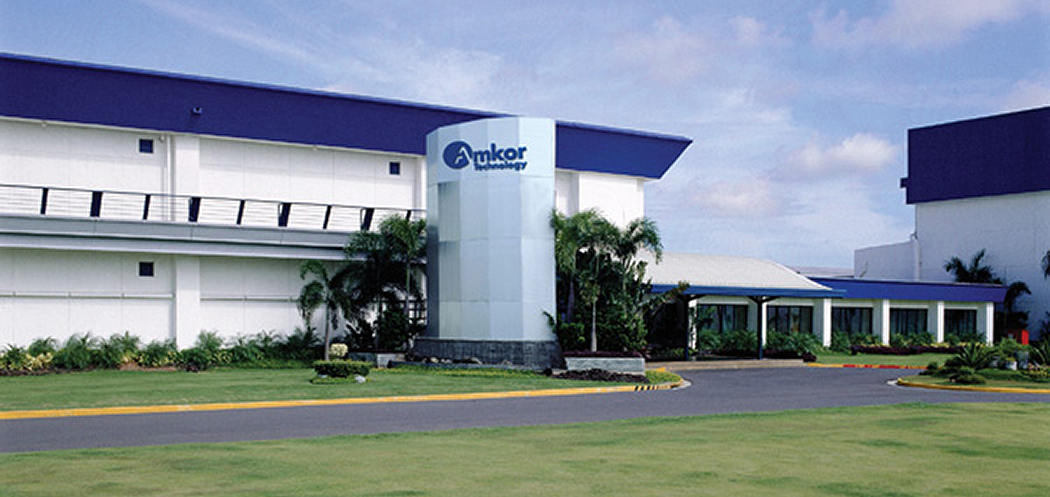

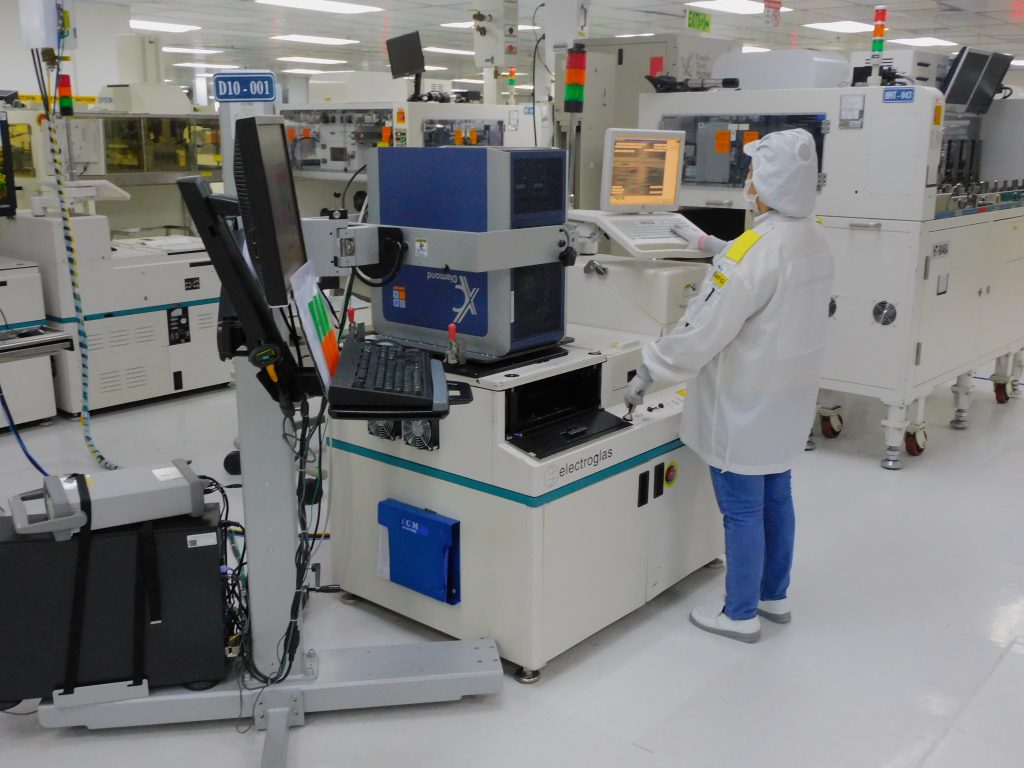

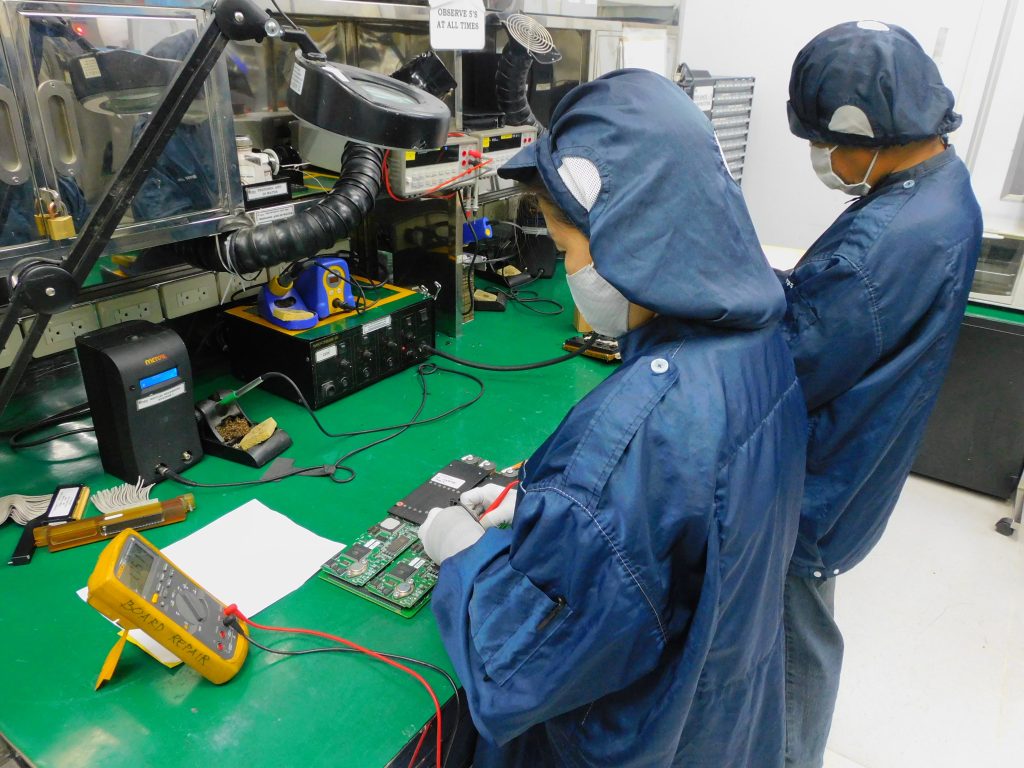

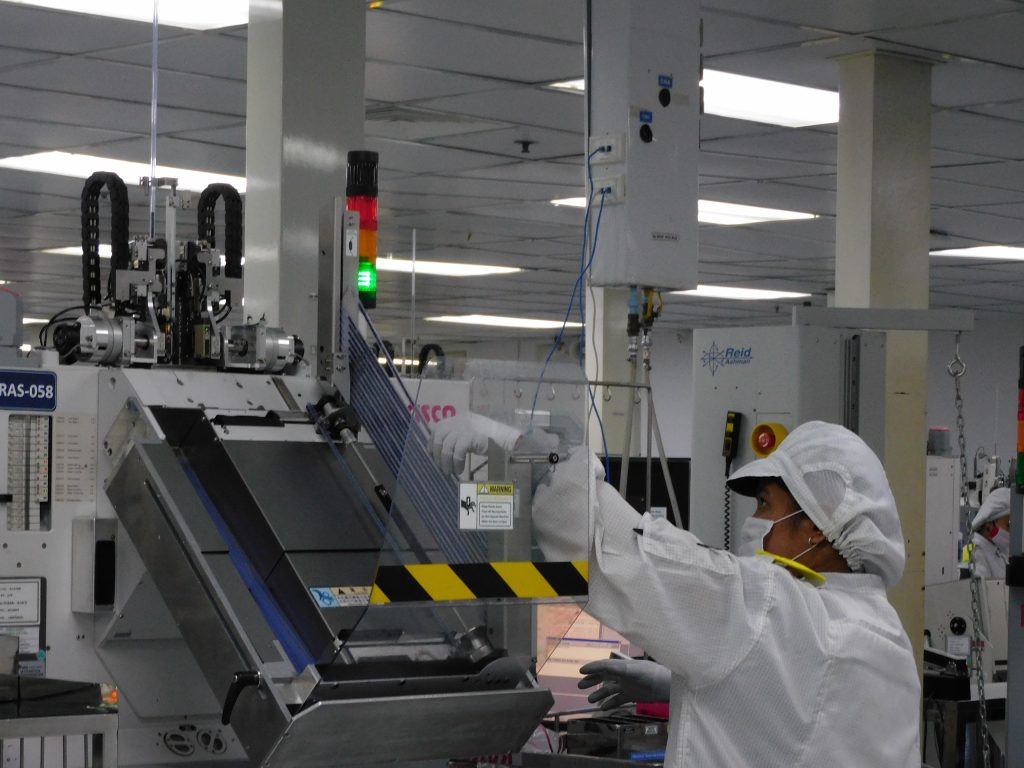

Amkor Technology Philippines (ATP) provides a full range of assembly and test services. ATP has two factories located in Muntinlupa City (P1) and Binan City, Laguna (P3/P4) to serve our global clientele. ATP P1, Muntinlupa City – has a manufacturing space of 32,000 sqm that is dedicated to producing legacy lead frame products.
ATP P3/P4, Binan City, Laguna, with a size of 32,800 sqm, is leading the way in advanced packaging technologies. P3 Assembly is recognized for its advanced packages and serves as a manufacturing and development center for MEMS and sensors. Amkor’s testing facility in P4 has been offering wafer probe and final testing services for the past 30 years, managing a wide range of applications including power and microcontrollers to MEMS.
With ATP registered with the Philippines Economic Zone Authority (PEZA), Amkor customers can enjoy significant benefits. The benefits consist of shipping products worldwide with incentives, VAT zero rating, and preferential tax rates, which guarantee a cost-efficient and efficient supply chain.
ATP has earned a reputation for its reliable packaging technology innovations and testing facilities. Our operational base encompasses both production and product development, which enables us to meet the changing demands of the semiconductor industry.
Offerings
- Wafer probe

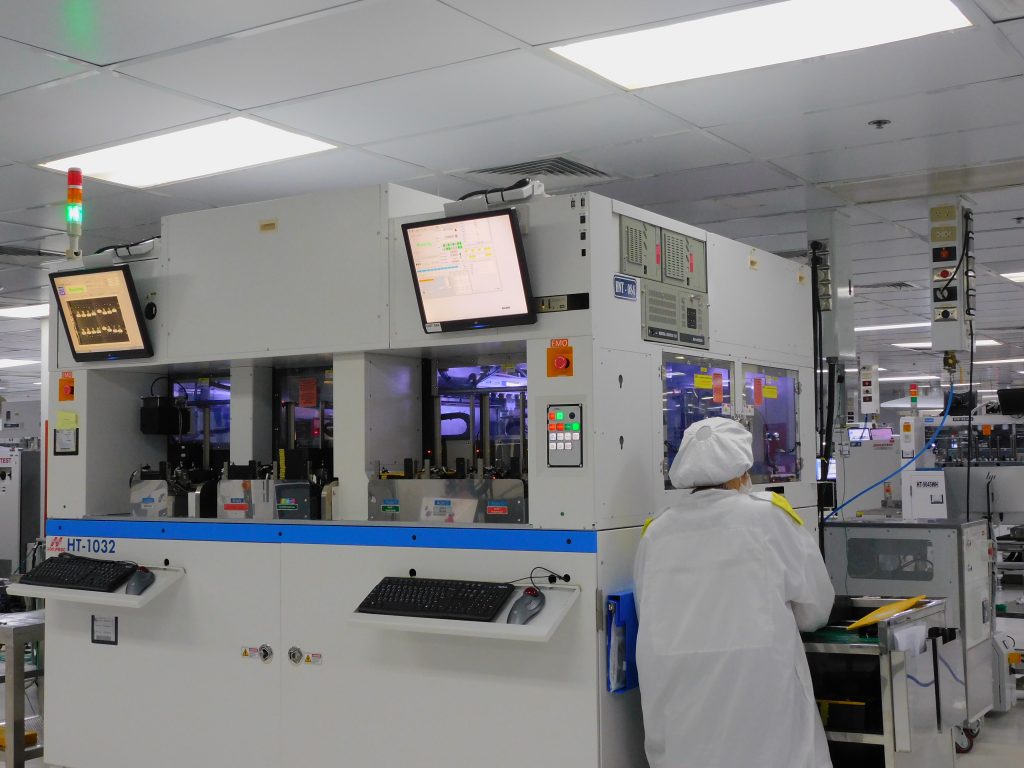

- Package test
- Film frame test
- System level test
- Test development
- MEMS Test
- Burn-in
Packages
- MLF®
- Leadframe
- QFP
Markets
- Automotive
- Consumer
- Memory

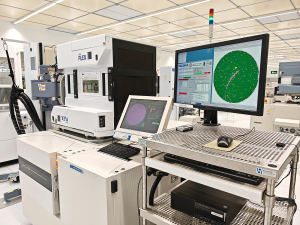

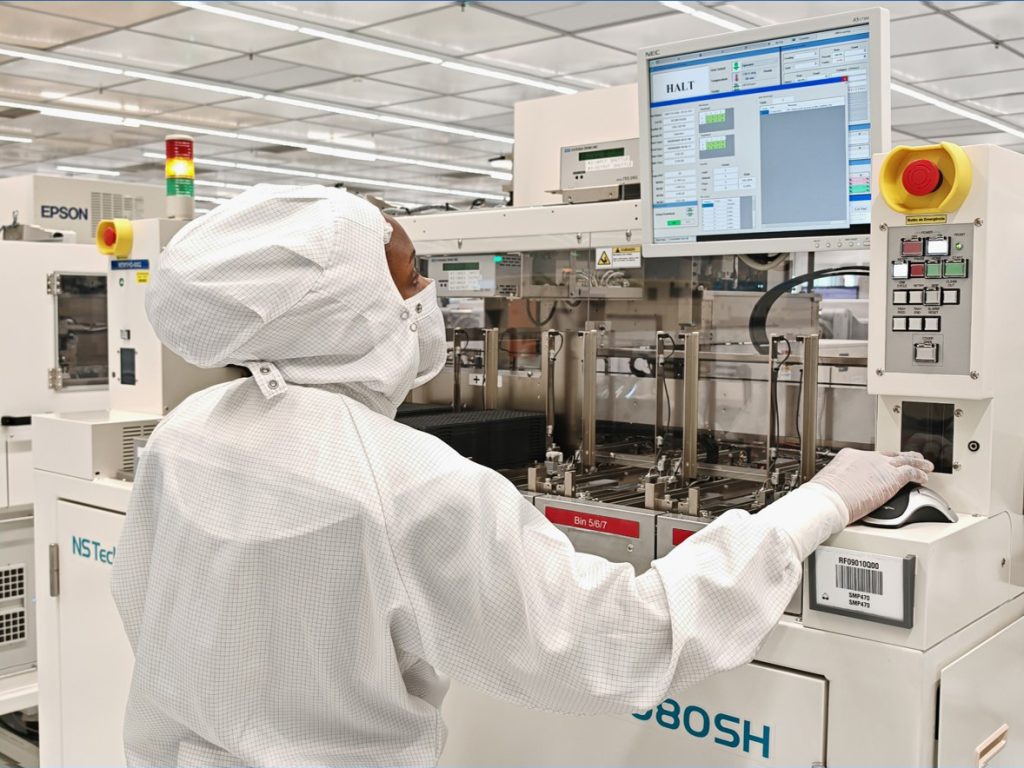

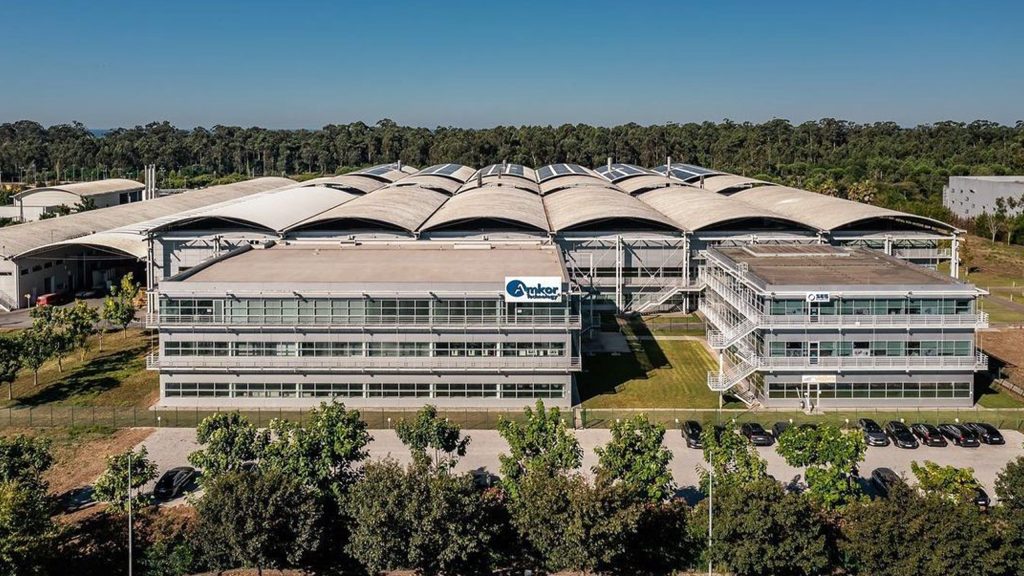

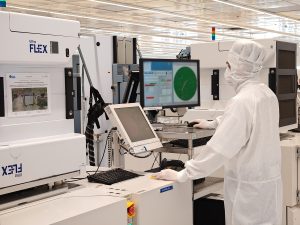

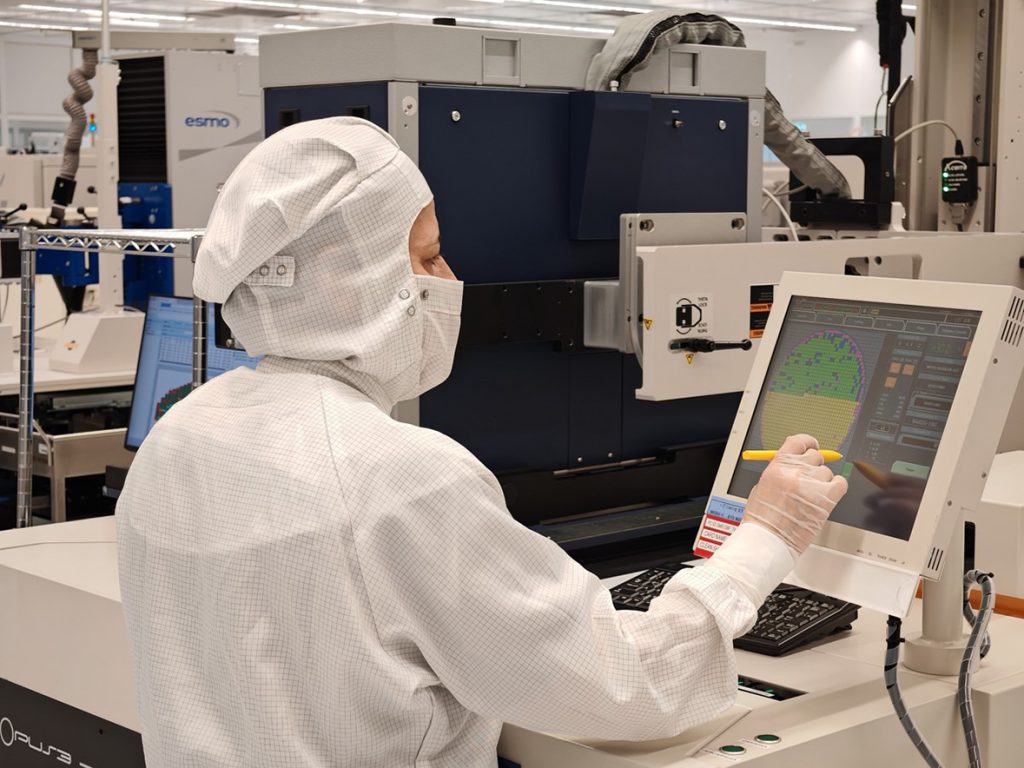

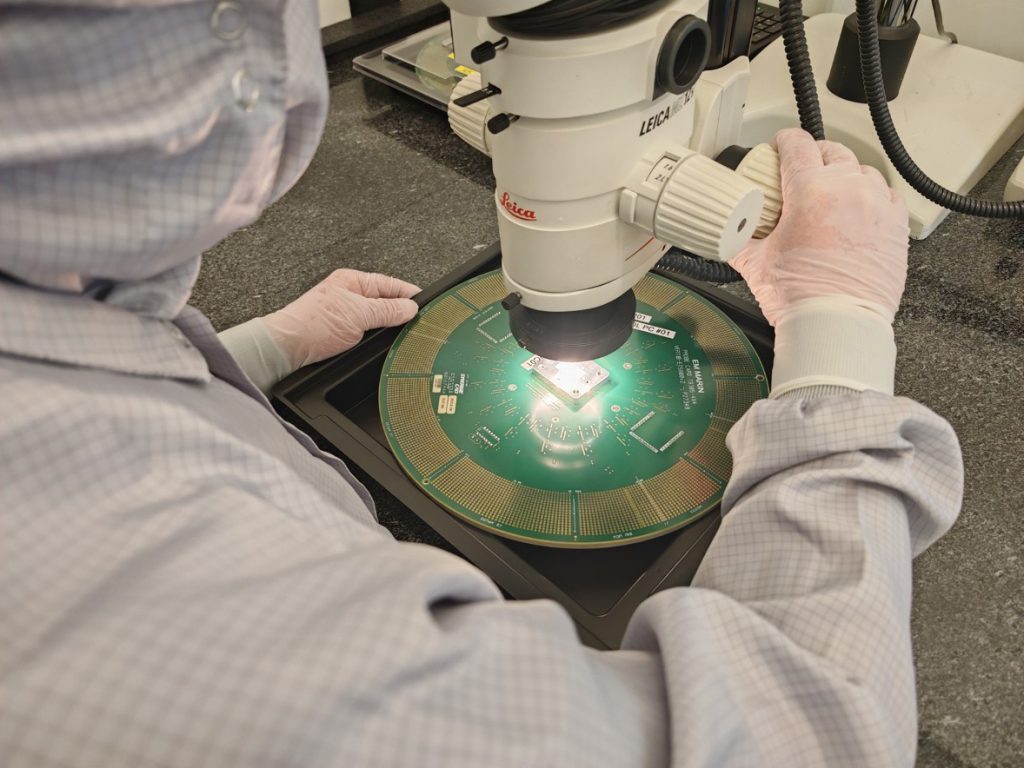

Amkor Technology Portugal (ATEP) is located near Porto, the second biggest city in Portugal and fifteen minutes away from the international airport and seaport with excellent direct connections inside Europe and to the rest of the World. Being the biggest Outsourced Semiconductor Assembly and Test facility in Europe, dedicated to Advanced Packaging, the location benefits from accumulated Semiconductor Assembly and Test experience in the region for more than five decades. ATEP currently has 20,000 square meters of clean room space and is expanding to 50,000 square meters.
Offerings

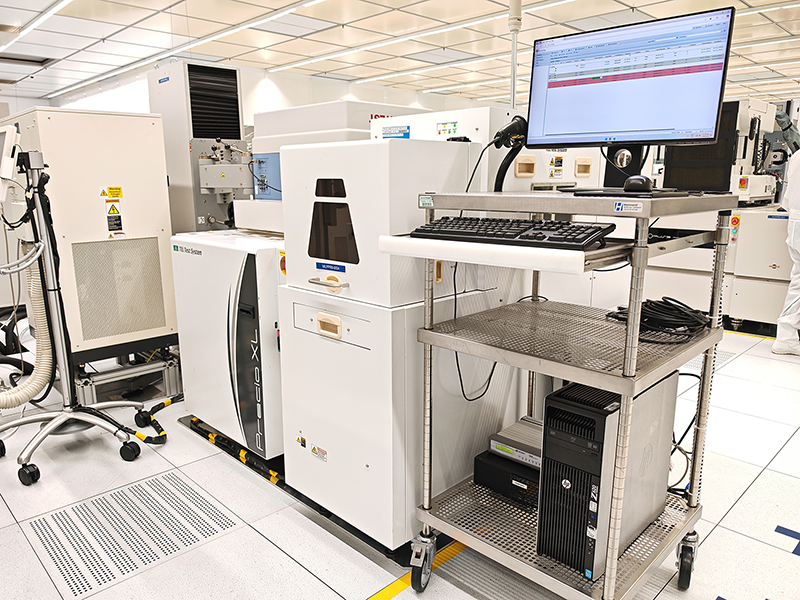

- Wafer probe
- Test development
Packages
- FCBGA
- WLCSP
- WLFO
Markets
- Automotive
- Communication
- Memory

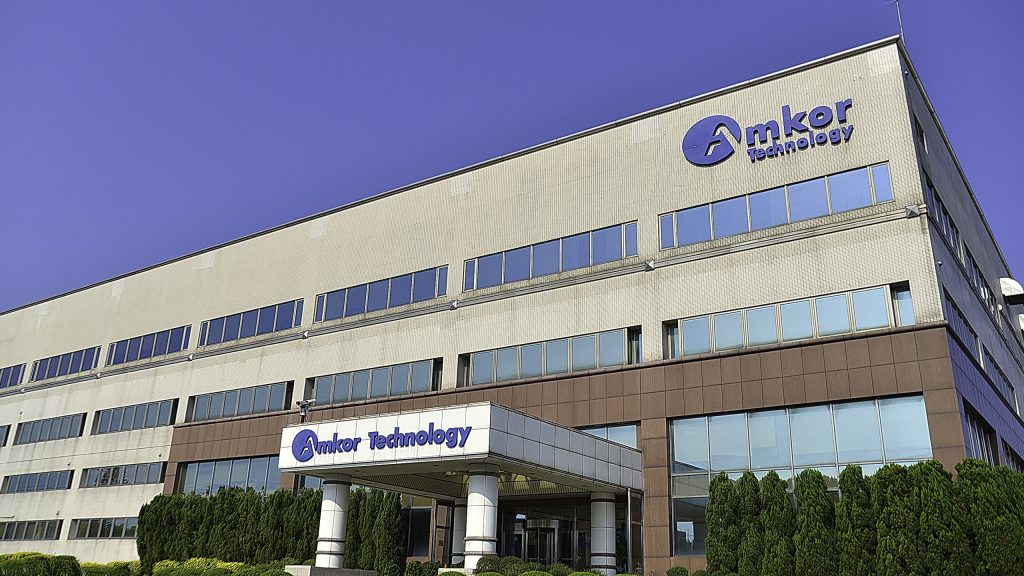

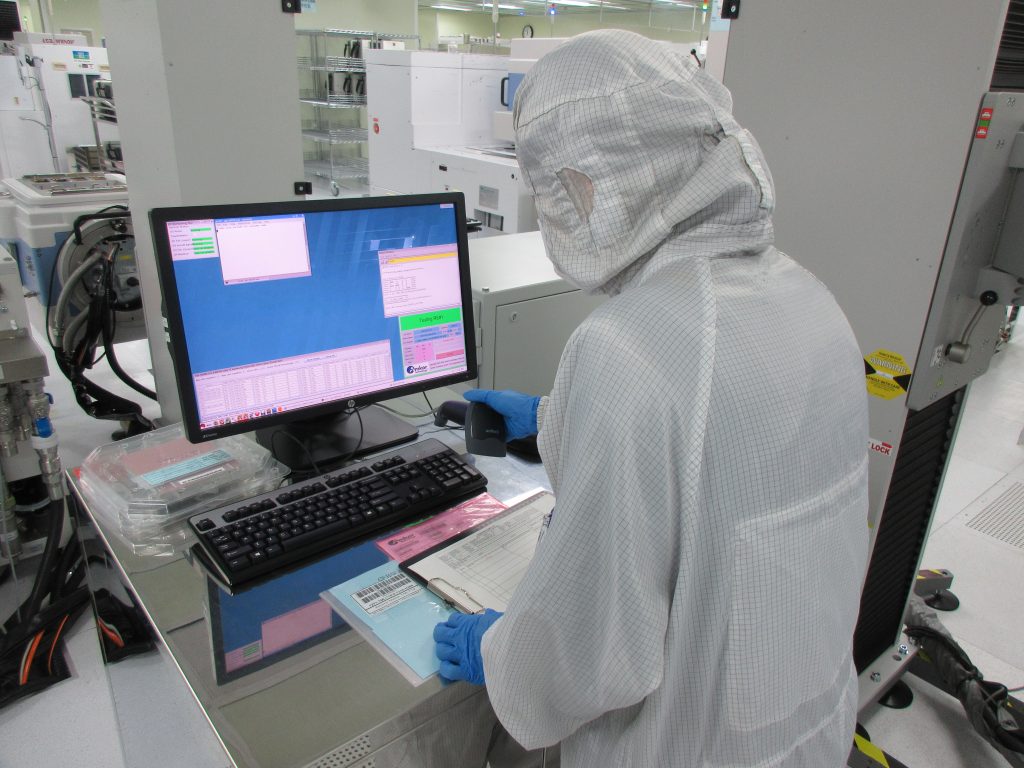

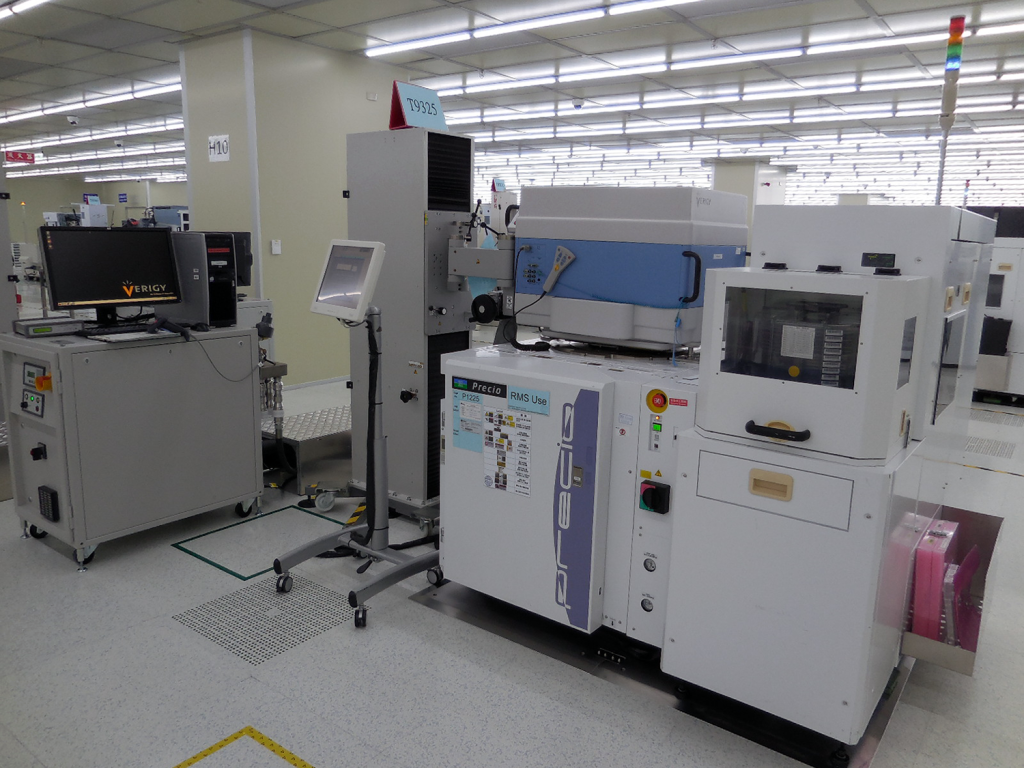

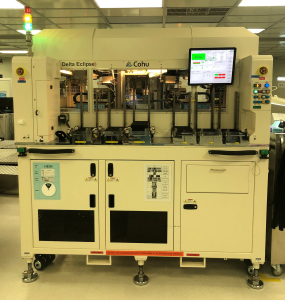

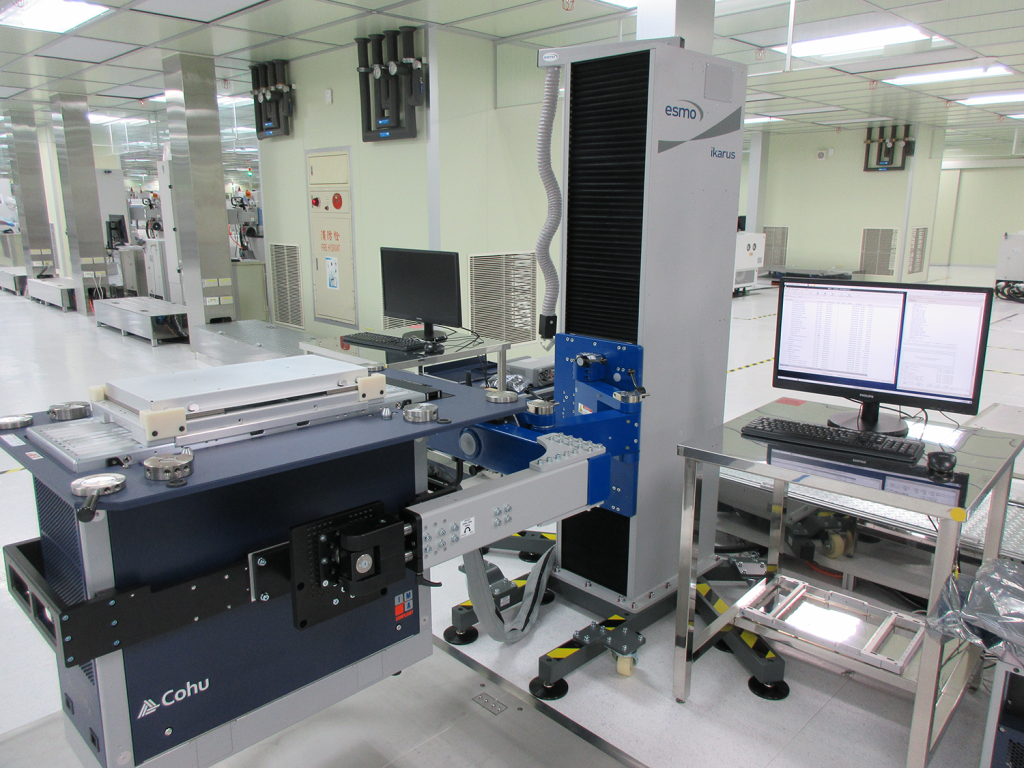

ATT is situated in the HsinChu scientific area’s Taiwan Semiconductor Circle ecology, and it takes 30 minutes to reach the airport and wafer foundries. With Full-TurnKey solution services that include Bump/CP/WLCSP & Bump/CP/FCBGA/FT, Amkor Technology Taiwan (ATT) focuses on advanced packages (Bump, WLCSP and FCBGA). Additionally, ATT provides RD resources to help clients with complete solution design, including package, test program, and assembly development. ATT has 48,000 square meters of cleanroom manufacturing space.
Offerings
- Wafer probe
- Package test
- Film frame test
- Bumping
Packages
- Bumped wafer
- WLCSP
- fcCSP
- FCBGA
- SiP
Markets
- Communication
- Consumer
- Networking

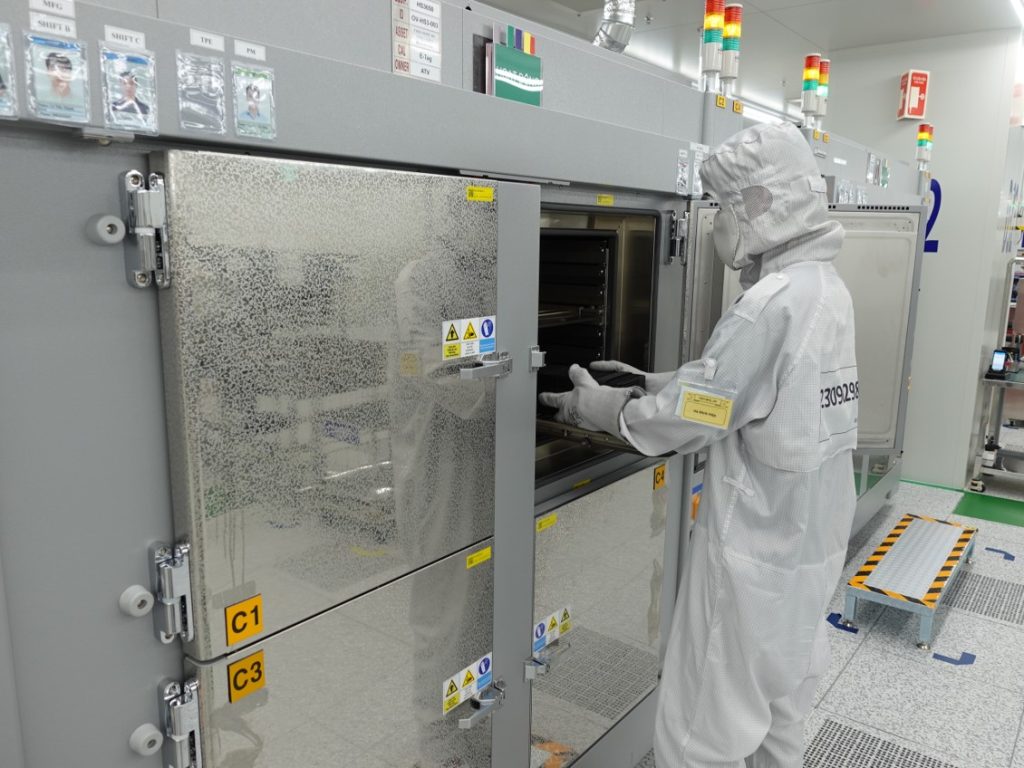

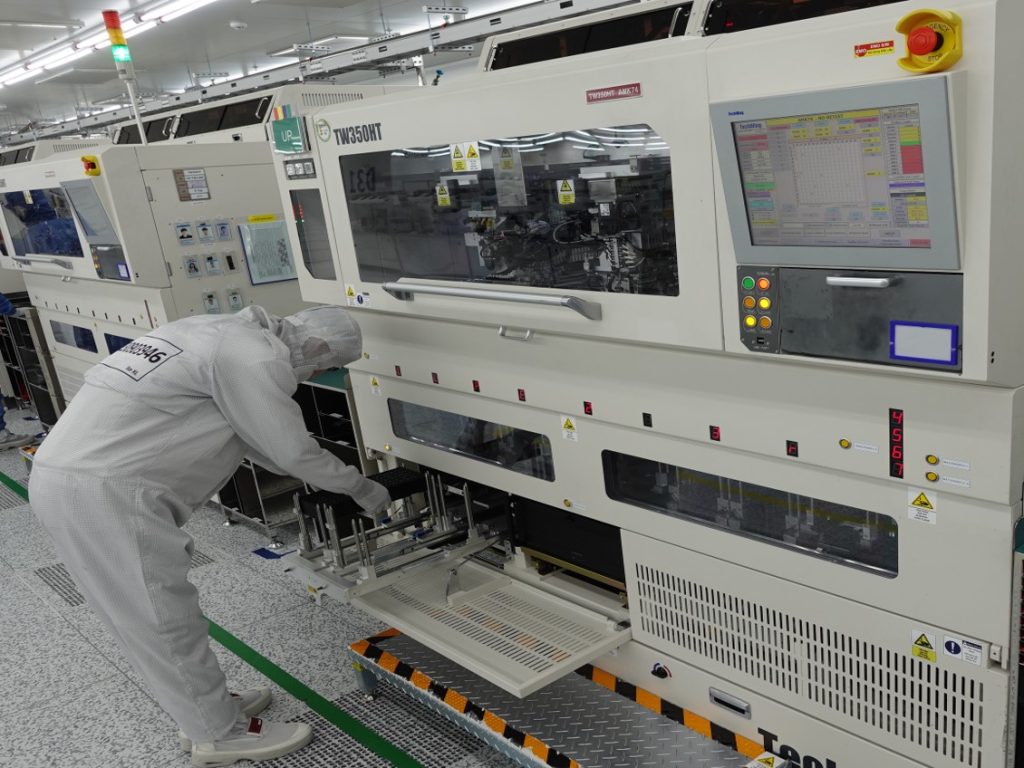

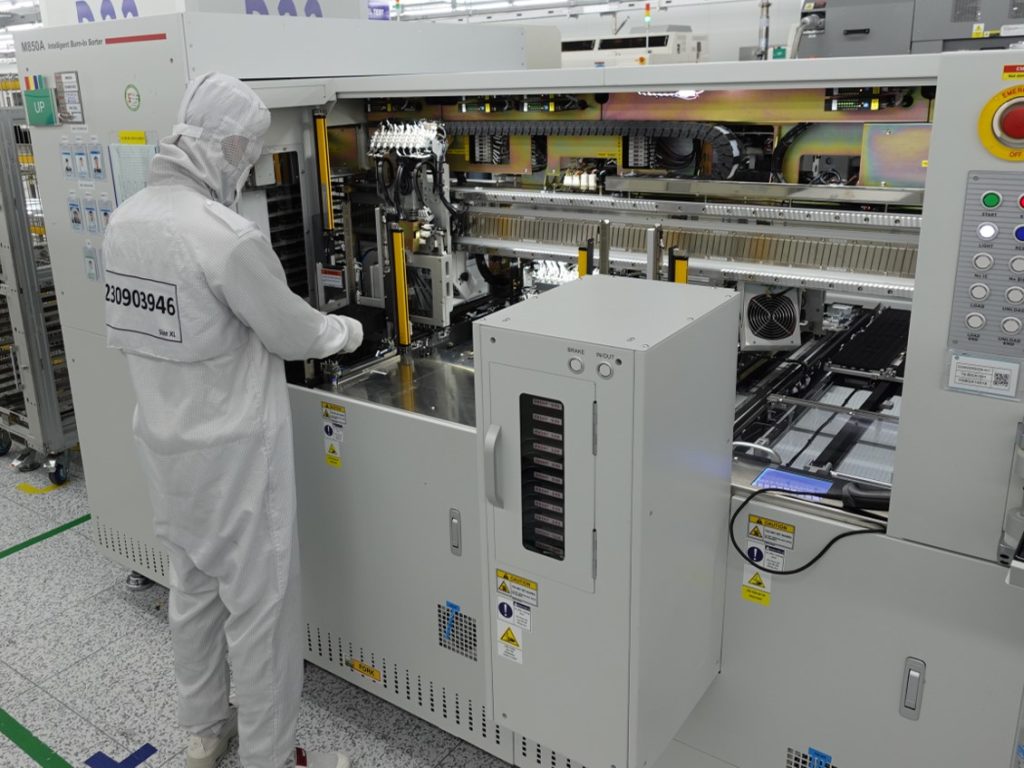

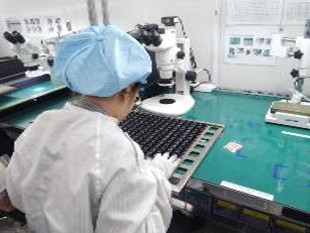

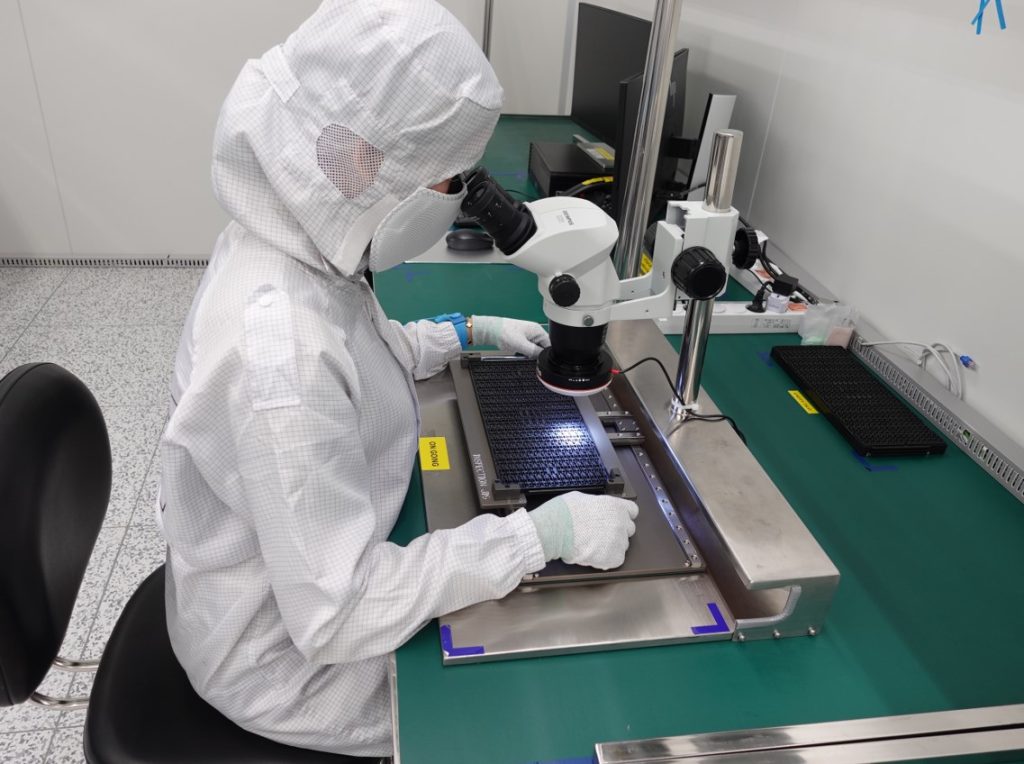

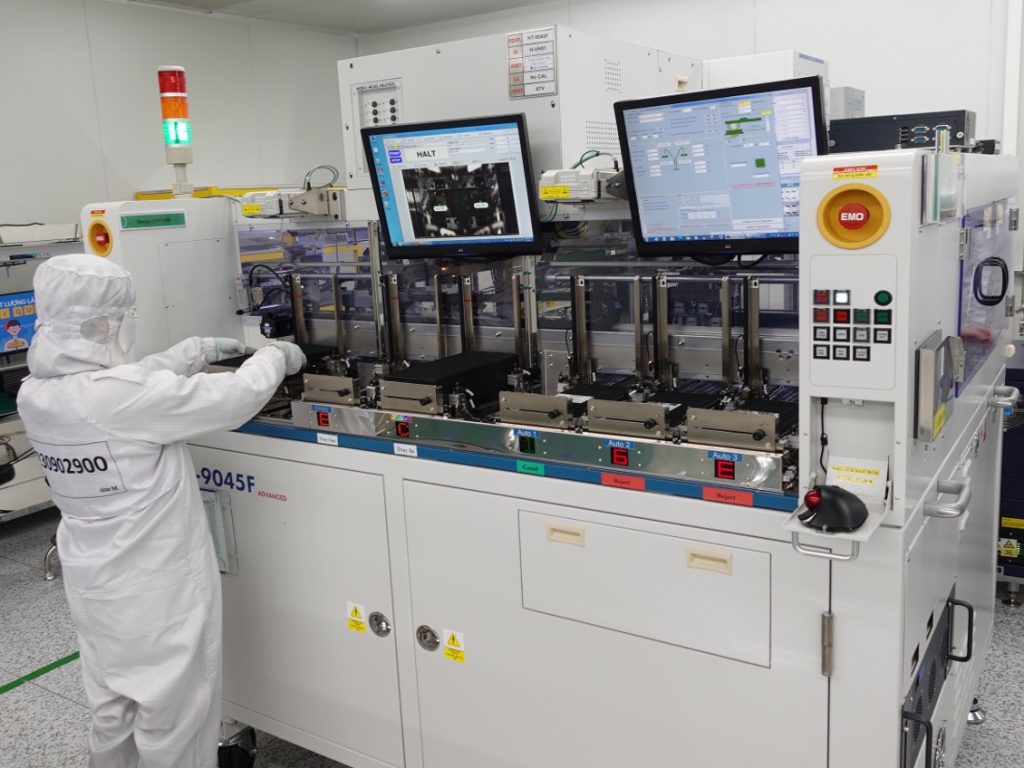

Amkor Technology Vietnam (ATV) is situated in Bac Ninh, and it takes 25 minutes to reach the airport. This site provides System-In-Package and Memory package and test services. Additionally, ATV provides RD resources to help clients with complete solution design, including package, test program, and assembly development. ATV has a large area of cleanroom manufacturing space.

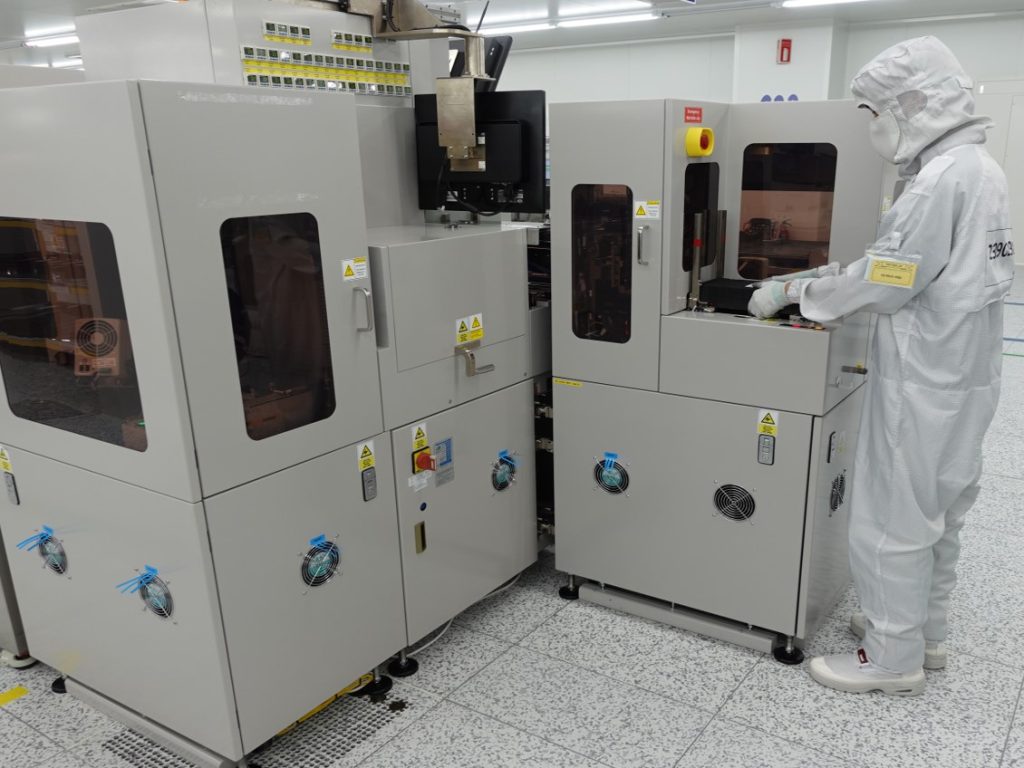

Offerings
- Final test
- System level test
- Test development
Packages
- SIP – SoC, SoC
+ Memory PoP, double sided stacked - Memory
- AiP, AoP
Markets
- Communication
- Consumer
Test Development Engineering
A fraction of the customers develop their own complete test solutions and offload to Amkor for production. Amkor can enable co-development, or full development, of complete test software and hardware solutions. Engage with us early in the product design for maximum impact or come to us later in the product lifecycle for significant cost savings with migrations to more cost-effective testers and/or higher parallelism.
Typical Test Development Cycle Times
Differentiated Test By Market
Amkor is the number one automotive OSAT, supporting worldwide supply chains. Products in this area include infotainment and safety (ADAS) requiring high levels of performance. This requires a comprehensive set of test during the production test workflow.
- Cold wafer probe, room & hot temperature final test
- High-quality, standards-compliant processes and systems
- Inspections and multi-temperature test capabilities
- Wafer probe at -55°C to +200°C
- Final test at -55°C to +175°C
- Burn-in
- System Level Test (SLT)
- Cold wafer probe and perform room & hot temperature final test
- Post-assembly opens/shorts testing includes 2 and 4-wire resistance tests
The largest fraction of Amkor’s revenue is derived from the Communications market segment. This includes smartphones, tablets, handhelds and wearable devices. Our leading-edge test solutions keep pace with rapid changes in cellular and connectivity technology requirements. Amkor is well-positioned for 5G RF wireless products and their test requirements.
- RF 5G NR Conductive test for both FR1 and FR2 frequency ranges
- Asynchronous test for a multitude of RF connectivity standards
- ATE w/32 port and multi-site, multi-channel Tx & Rx support
- Complex SiP with simple SLT, including RF callbox testing
- Local RF shielding ≤60 dBm
- Multi-site x8 RF test to lower cost
- RF Front End (RFFE), SiP & IoT
- RF wafer probe capabilities – known good die (KGD) for WLCSP and known tested die (KTD) for SiP
- Single and multiple channel beamforming, phased array, AiP/AoP support
- SoC + Memory PoP – double side test/stack CSP – memory and logic test
Amkor is a leading provider of high-performance test solutions for the demanding networking and high-performance compute market. This market segment is driving the need for multiple chiplets that include artificial intelligence (AI) accelerators, central processing units (CPU), graphics processing units (GPU), field-programmable gate array (FPGA), input/output (I/O), serializer/deserializer (SERDES – PCIe, CXL), silicon (Si) photonics. Integral to these markets are advanced memory technologies like high bandwidth memory (HBM) and migrations from hard disk drives to solid-state drives (SSD), with NAND memories.
- Distributed test (wafer probe, in-situ test between key assembly steps and final test (SLT and ATE) for 2.5D & 3D). Probe solutions and wafer map management for chip-on-wafer (CoW)
- Active thermal control (ATC) for up to 300-watt & up to 1000W products across tri-temperature in SLT and ATE test
- Dynamic burn-in. Test during burn-in (TDBI)
- Film frame and strip test (x308 EEPROM)
- High-speed serial digital (e.g. PCIe Gen4, Gen5) testing up to 16 Gbps and 32 Gbps
- Silicon Photonics ICs
Amkor is a leader in power discrete devices & modules like Diodes, Flip chip MOSFETs, Intelligent power modules, Insulated-Gate Bipolar Transistors (IGBT), Multi-voltage FETs, Regulators and bipolar transistors for the automotive, power transmission and industrial segments. Amkor’s test services are closely integrated with the assembly flow for shorter cycle times and reduced costs. Key characteristics include:
- High current, high voltage
- Kelvin contact-type tests
- Low Rds_on
- Si, SiC, Gan
Products for today’s Internet of Things (IoT) and Industrial Internet of Things (IIoT) require an MCU, RF transmitter/receiver, sensors and actuators. Sensor technologies include and are not limited to magnetometers, accelerometers, gyroscopes, proximity, RF switches, photo sensors, microphones, micro-speakers, humidity, pressure, and temperature. The test solution needs to cover the conversion of these physical real-world analog signals in a variety of range of operations into an electrical stimulus that is tested during the production workflow.
Test Packages
Operations
- Copper Pillar (CuP) bump probe test at 125°C
- Hot & cold test capabilities
- No Micro-Bump probe – Lack of demand
Test Solution
- All ATE varieties
- Probe cards to match the product’s functional requirements
- Warpage handling prober
Current Products
- Automotive radar transceivers/receivers, pressure sensors and network switches
- RF tuners, baseband, transceivers, switches, PMIC, GPU
- WLCSP, WLFO, CuP, leadframe bump, CoW, SiP, CoC, and 2.5D/3D TSV
Operations
- O/S, KGD/Interposer, TSV test
- Package final test/SLT
Test Solution
- C/P: Approaching 50 µm pitch, >35K needles, >100A, tri-temp
- F/T: Tri-temp, ATC >300W
- O/S: 2/4 wires Kelvin
- SLT: 12 sites, ATC >300W
Current Products
- Logic + Memory + Si Interposer, 3D TSV HBM, HMC
- Mobile AP, CPU, GPU
- Networking, server
Operations
- Burn-in
- Final test
- System level test
Test Solution
- Contactor waveguide design
- Firmware-based PC test
- Multi-channel RF connectivity standards
- SLT handler for RF callbox test
Current Products
- Flip chip Tx/Rx @ 24/53 GHz for mmWave
- Qualified BOM in HVM for fcCSP for WiGig (60 GHz)
- RF Front-end module
- WLFO Qualified for 60GHz & 80GHz bands
Operations
- Final Test and SLT test steps
Test Solution
- Asynchronous test for a variety of RF connectivity standards
- Contactor design for module test
- Firmware-based PC test
- Slot-based SLT handler for massively parallel test
Current Products
- Advanced SiP, PoP, DSBGA, stacked die, Package in Package (PiP), cavity, Face-to-Face (F2F) and others
- RF Front-end module
- Automotive/PMIC/MEMS/EMI shield/IPD
Operations
- SOC + Memory PoP
- Double side test/stack CSP
- Memory & logic test
Test Solution
- Memory interface test through logic or modem die
- Memory test at SLT and memory fuse blow through logic die
- Top/bottom socket
Current Products
- Fine pitch TMV®/Interposer PoP
- Mobile AP & BB PoP
- Mobile modem & memory stack CSP
